Key benefits of the system

Hygiene:

  • Odour elimination. The dewatered food waste has a very low fermentation rate because most of the water content has been drained
  • No food waste stored at kitchen level –reducing risk of cross contamination
  • Eliminates transportation of food waste around the premises – reduces labour cost

Operational:

  • Separation of food waste from other waste, reduces disposal costs
  • Eliminates food waste transportation issues –reduces labour costs
  • Automatic self cleaning cycle require no human intervention at dewater level
  • Simple efficient design reducing maintenance and service costs
  • High power food waste stations (2,2 kW) ensure a long term heavy duty solution
  • Compact food waste storage room required as the food waste is reduced in volume by up to 80%

Installation:

  • 50 mm. diameter plastic piping allows for simple installation to new building or existing premises
  • A bespoken solution because the system is flexible and modular

Social:

  • Provides an environmental friendly solution to food waste disposal
  • Meets the current legislation;
  • The dewatered food waste can be used as a high quality feedstock for Anaerobic Digestion systems or for Composting.

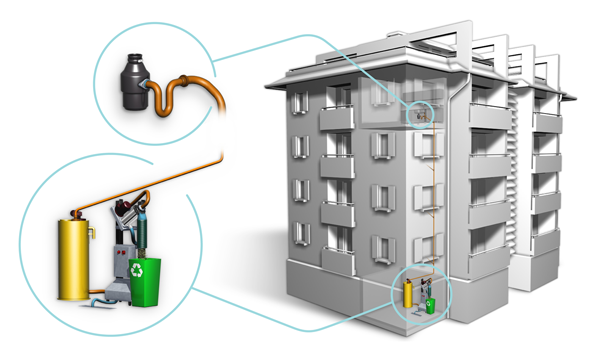

Here is how it works

  1. FOOD WASTE IS FED INTO A HOPPER AT FOOD WASTE FREE STANDING STATIONS
  2. FOOD WASTE IS GROUND AND AUTOMATICALLY PUMPED AND TRANSPORTED BY WATER THROUGH 50 mm. PLASTIC PIPES TO A TEMPORARY STORAGE TANK – OUTSIDE THE KITCHEN
  3. FOOD WASTE IS THEN DE-WATERED BY A CENTRIFUGE UNIT AND HYGIENICALLY STORED IN A 120/240 litre BIN UNIT, AWAITING COLLECTION FOR ENVIRONMENTAL FRIENDLY DISPOSAL

Key technical features

Disposer: 2,2 kW with Impeller Geared Motor Pump 0,75 kW – grinder capacity up to 150kgs per hour / 250÷400 meals per hour
PP Storage Tank: with Mixer 0,22 kW and pressure level sensors – capacity 300 and 600 litre
DEHYDRA: Dewatering Selfclean Unit 1,1 kW – capacity 30 litres of wastewater per minute

Installation technical requirements

Water supply connections: cold and hot water Ø ¾ or ½”
Electrical power supply: 3 phase 400V – 50Hz – Socket: 3P+Earth – 16 Amp (4 wires)
Dedicated drainage line: Ø 50 mm. pipe required
Drain connection: Ø 50 mm. pipe required
Machine warranty: 1 year

Notes

The Modular and Remote De-Watering System is in compliance with CE rules and each part of the system is complying with the following pertinent rules and technical specification:
EC Machine Directive 2006/43/CE
EMC Directive 2004/108/CE – Electromagnetic compatibility directive
Main technical standards applied: UNI EN ISO 12100-1 – UNI EN ISO 13857 – UNI EN 954-1 – CEI EN 60204-1
